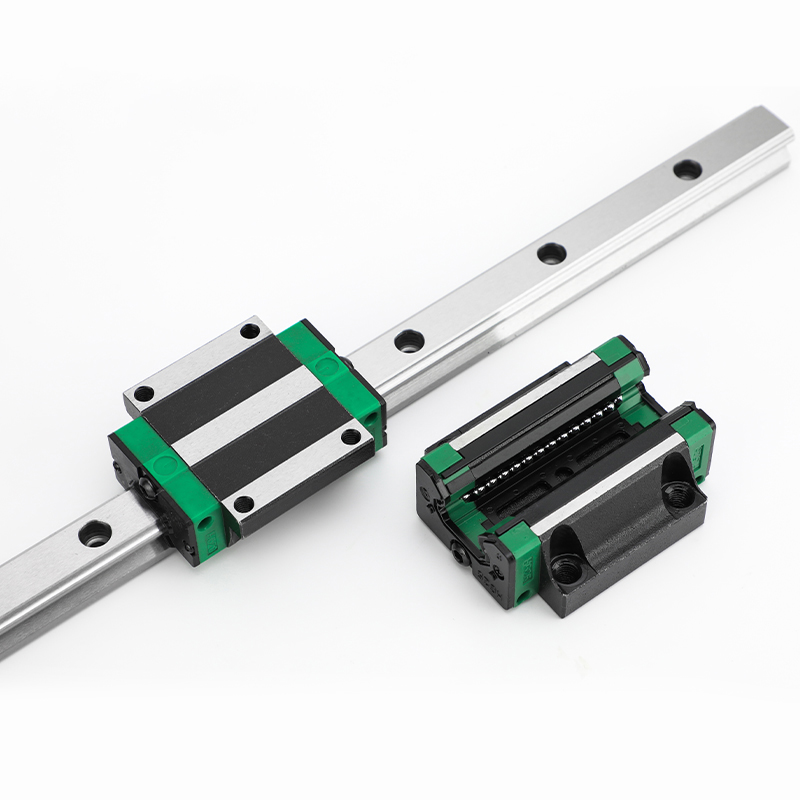

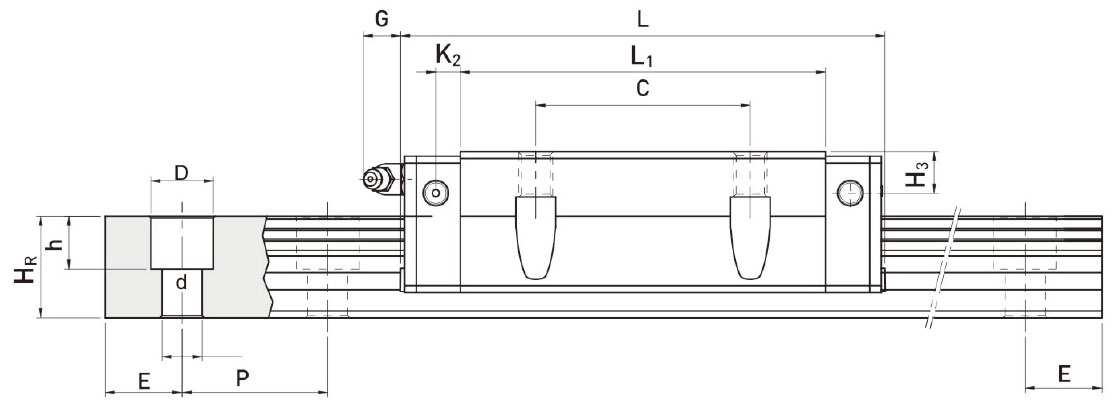

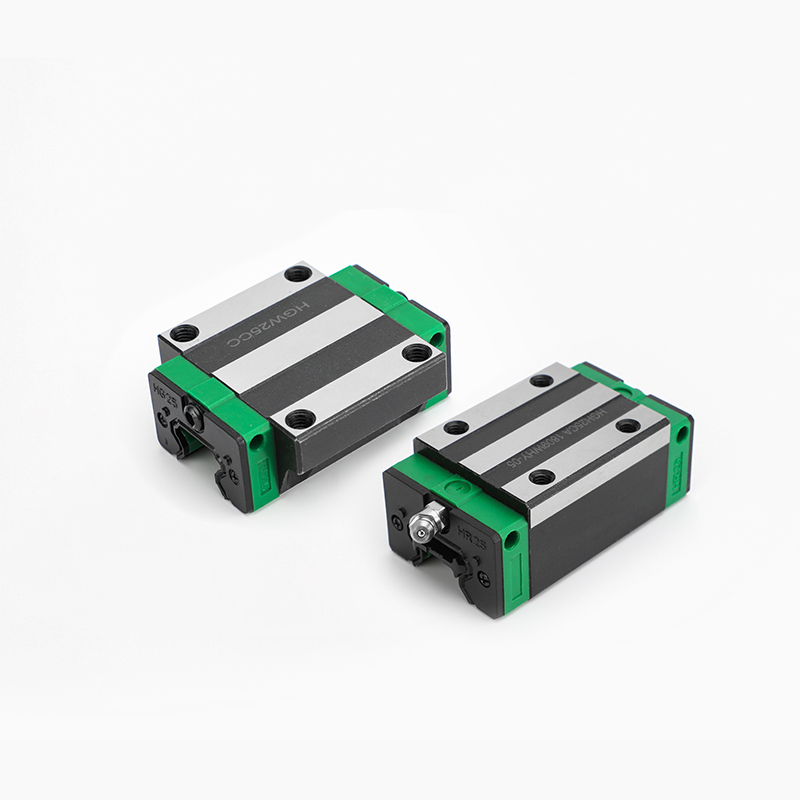

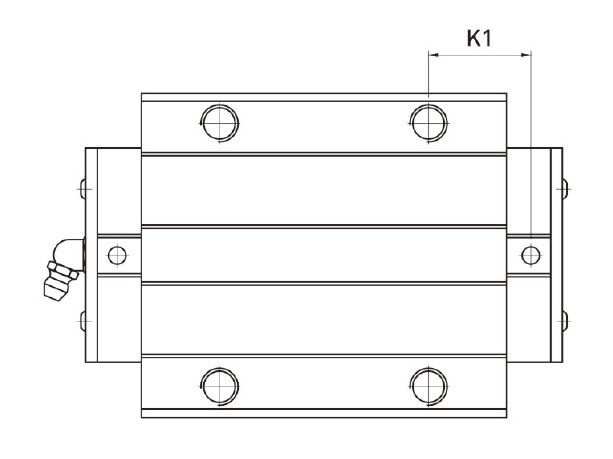

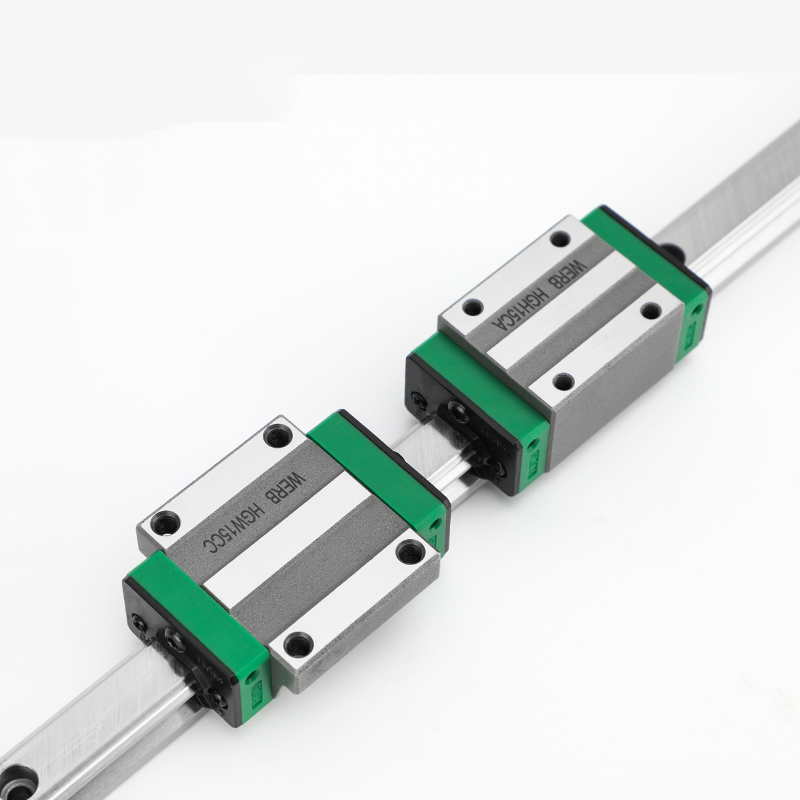

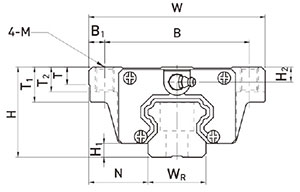

Model No. | Dimensions of Assombly( mm ) | Dimensions of Black ( mm ) | |||||||||||||||
H | H1 | N | W | B | B1 | C | L1 | L | K1 | K2 | G | M | T | T1 | H2 | H3 | |
HGW15CC | 24 | 4.3 | 16 | 47 | 38 | 4.5 | 30 | 39.4 | 61.4 | 8 | 4.85 | 5.3 | M5 | 6 | 8.9 | 3.95 | 3.7 |
HGW20CC | 30 | 4.6 | 21.5 | 63 | 53 | 5 | 40 | 50.5 | 77.5 | 10.25 | 6 | 12 | M6 | 8 | 10 | 6 | 6 |
HGW20HC | 65.2 | 92.2 | 17.6 | ||||||||||||||
HGW25CC | 36 | 5.5 | 23.5 | 70 | 57 | 6.5 | 45 | 58 | 84 | 10.7 | 6 | 12 | M8 | 8 | 14 | 6 | 5 |
HGW25HC | 78.6 | 104.6 | 21 | ||||||||||||||
HGW30CC | 42 | 6 | 31 | 90 | 72 | 9 | 52 | 70 | 97.4 | 14.25 | 6 | 12 | M10 | 8.5 | 16 | 6.5 | 10.8 |
HGW30HC | 93 | 120.4 | 25.75 | ||||||||||||||
HGW35CC | 48 | 7.5 | 33 | 100 | 82 | 9 | 62 | 80 | 112.4 | 14.6 | 7 | 12 | M10 | 10.1 | 18 | 9 | 12.6 |
HGW35HC | 105.8 | 138.2 | 27.5 | ||||||||||||||
HGW45CC | 60 | 9.5 | 37.5 | 120 | 100 | 10 | 80 | 97 | 139.4 | 13 | 10 | 12.9 | M12 | 15.1 | 22 | 8.5 | 20.5 |
HGW45HC | 128.8 | 171.2 | 28.9 | ||||||||||||||
HGW55CC | 70 | 13 | 43.5 | 140 | 116 | 12 | 95 | 117.7 | 166.7 | 17.35 | 11 | 12.9 | M14 | 17.5 | 26.5 | 12 | 19 |
HGW55HC | 155.8 | 204.8 | 36.4 | ||||||||||||||
HGW65CC | 90 | 15 | 53.5 | 170 | 142 | 14 | 110 | 144.2 | 200.2 | 23.1 | 14 | 12.9 | M16 | 25 | 37.5 | 15 | 15 |
HGW65HC | 203.6 | 259.6 | 52.8 |
Dimensions of Rail ( mm ) | Mounting Bolt for Rail | Basic Dynamic Load Rating | Basic Static Load Rating | Static Rated Moment | Weight | |||||||||

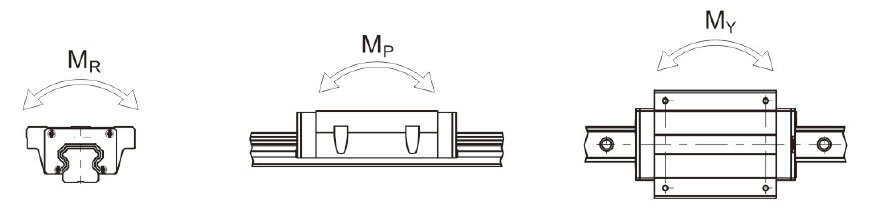

MR kN-m | MP kN-m | MY kN-m | Block kg | Rail | ||||||||||
WR | HR | D | h | d | P | E | ( mm ) | C(kN) | CO(kN) | kg/m | ||||
15 | 15 | 7.5 | 5.3 | 4.5 | 60 | 20 | M4x16 | 11.38 | 16.97 | 0.12 | 0.10 | 0.10 | 0.17 | 1.45 |
20 | 17.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5x16 | 17.75 | 27.76 | 0.27 | 0.20 | 0.20 | 0.40 | 2.21 |
21.18 | 35.90 | 0.35 | 0.35 | 0.35 | 0.52 | |||||||||
23 | 22 | 11 | 9 | 7 | 60 | 20 | M6x20 | 26.48 | 36.49 | 0.42 | 0.33 | 0.33 | 0.59 | 3.21 |
32.75 | 49.44 | 0.56 | 0.57 | 0.57 | 0.80 | |||||||||
28 | 26 | 14 | 12 | 9 | 80 | 20 | M8x25 | 38.74 | 52.19 | 0.66 | 0.53 | 0.53 | 1.09 | 4.47 |
47.27 | 69.16 | 0.88 | 0.92 | 0.92 | 1.44 | |||||||||
34 | 29 | 14 | 12 | 9 | 80 | 20 | M8x25 | 49.52 | 69.16 | 1.16 | 0.81 | 0.81 | 1.56 | 6.30 |
60.21 | 91.63 | 1.54 | 1.40 | 1.40 | 2.06 | |||||||||
45 | 38 | 20 | 17 | 14 | 105 | 22.5 | M12x35 | 77.57 | 102.71 | 1.98 | 1.55 | 1.55 | 2.79 | 10.41 |
94.54 | 136.46 | 2.63 | 2.68 | 2.68 | 3.69 | |||||||||
53 | 44 | 23 | 20 | 16 | 120 | 30 | M14x45 | 114.44 | 148.33 | 3.69 | 2.64 | 2.64 | 4.52 | 15.08 |
139.35 | 196.20 | 4.88 | 4.57 | 4.57 | 5.96 | |||||||||
63 | 53 | 26 | 22 | 18 | 150 | 35 | M16x50 | 163.63 | 215.33 | 6.65 | 4.27 | 4.27 | 9.17 | 21.18 |
208.36 | 303.13 | 9.38 | 7.38 | 7.38 | 12.89 |
Note: 1kgf=9.81N
